1N5518B-1

500mW Zener Diodes

Microsemi

Image	Manufacturer	B2B MPN	Description	Distributor	Stock	Quantity	Price	Buy Now
	Microchip Technology Inc	JANTX1N5518B-1-TR	DIODE ZENER 3.3V 500MW DO204AH	DigiKey	0	112 units	$6.07	🛒 Buy Now

1N5518B-1 Datasheet (175.60 KB)

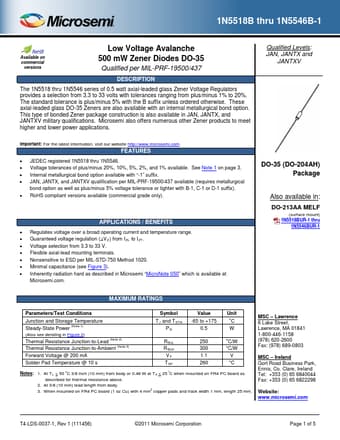

1N5518B-1 Datasheet Preview — Preview of 1N5518B-1 PDF Datasheet

Datasheet Details

Part number:

1N5518B-1

Manufacturer:

Microsemi ↗

File Size:

175.60 KB

Description:

500mw zener diodes

1N5518B-1 Features

* JEDEC registered 1N5518 thru 1N5546.

* Voltage tolerances of plus/minus 20%, 10%, 5%, 2%, and 1% available. See Note 1 on page 3.

1N5518B-1 General Description

The 1N5518 thru 1N5546 series of 0.5 watt axial-leaded glass Zener Voltage Regulators provides a selection from 3.3 to 33 volts with tolerances ranging from plus/minus 1% to 20%. The standard tolerance is plus/minus 5% with the B suffix unless ordered otherwise. These axial-leaded glass DO-35 Zener.
