1N5712UR-1, 1N5711UR-1 - Schottky Barrier Diode

Microsemi

📥 Download Datasheet

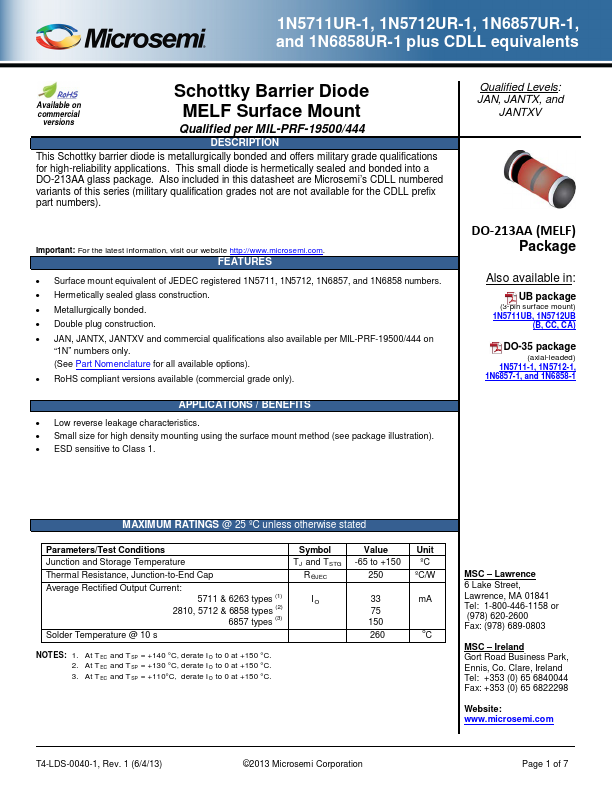

1N5712UR-1 Datasheet Preview — This datasheet PDF includes multiple part numbers: 1N5712UR-1, 1N5711UR-1. Please refer to the document for exact specifications by model.

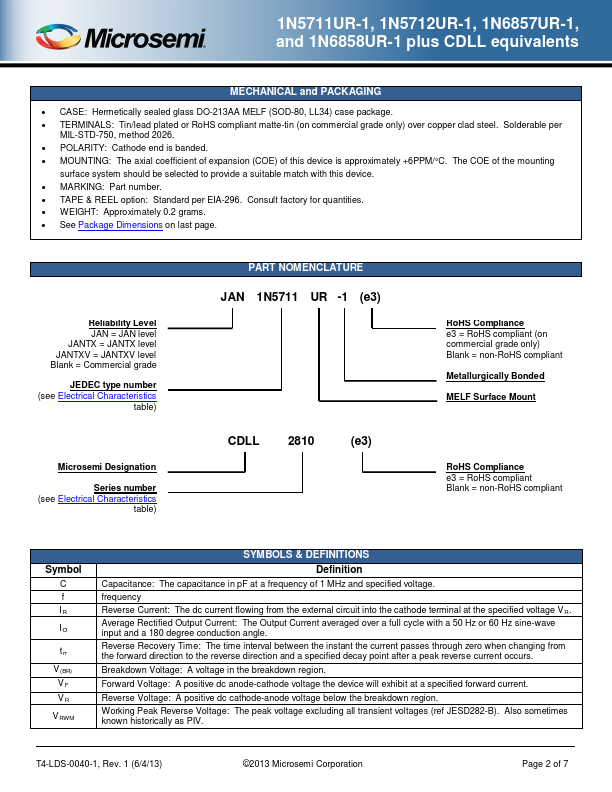

datasheet Preview Page 2

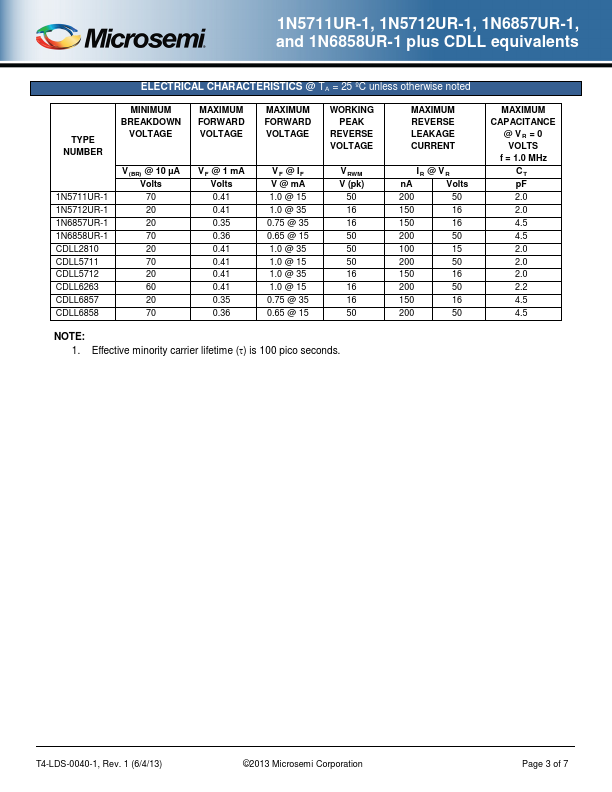

datasheet Preview Page 3

Datasheet Details

Part number	1N5712UR-1, 1N5711UR-1
Manufacturer	Microsemi ↗
File Size	469.96 KB
Description	Schottky Barrier Diode
Datasheet	1N5711UR-1-Microsemi.pdf
Note	This datasheet PDF includes multiple part numbers: 1N5712UR-1, 1N5711UR-1. Please refer to the document for exact specifications by model.

1N5712UR-1 Product details

Description

This Schottky barrier diode is metallurgically bonded and offers military grade qualifications for high-reliability applications.

Features

Surface mount equivalent of JEDEC registered 1N5711, 1N5712, 1N6857, and 1N6858 numbers.
Hermetically sealed glass construction.
Metallurgically bonded.
Double plug construction.
JAN, JANTX, JANTXV and commercial qualifications also available per MIL-PRF-19500/444 on “1N” numbers only. (See Part Nomenclature for all available options).
RoHS compliant versions available (commercial grade only).
