1N5943BP

Axial-Leaded 1.5 Watt Zener Diodes

1N5943BP Features

* below. The plastic molded Zeners with a P suffix provide a lower thermal resistance (junction to lead) compared to the optional glass body (G suffix) for these same JEDEC part numbers. Both package options are available by Microsemi. Microsemi also offers numerous other Zener products to meet higher

1N5943BP General Description

The 1N5913-5956B series of 1.5 watt Zeners provides voltage regulation in a selection from 3.3 to 200 volts with different tolerances as identified by suffix letter on the part. These plastic encapsulated Zeners have moisture classification of Level 1 with no dry pack required. They are also availab.

1N5943BP Datasheet (210.94 KB)

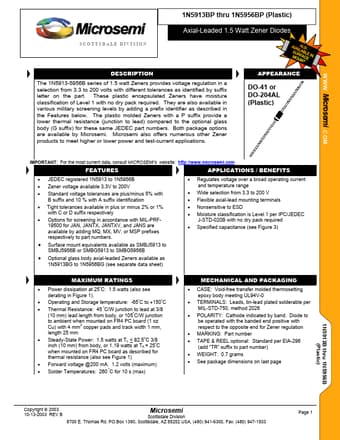

Preview of 1N5943BP PDF

Datasheet Details

Part number:

1N5943BP

Manufacturer:

Microsemi ↗

File Size:

210.94 KB

Description:

Axial-leaded 1.5 watt zener diodes.
