1N5957, 1N5767 PIN Diode

1N5957 Description

WWW.Microsemi .COM 1N5767 (5082-3080) SERIES 1N5957SERIES .
The 1N5767 and the 1N5957 PIN diodes are based upon low capacitance PIN chips designed with long minority carrier lifetime, and thick intrinsic width.

1N5957 Applications

* The 1N5957 is primarily used as an attenuator PIN diode and is particularly suitable wherever current controlled, wide dynamic range resistance elements are required. The 1N5957 has also been characterized for the 75Ω attenuator, commonly employed in CATV systems. IMPORTANT: Forthemostcurrentdata,

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 1N5957, 1N5767. Please refer to the document for exact specifications by model.

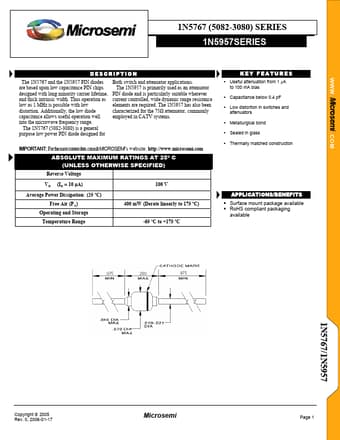

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
1N5957, 1N5767
Manufacturer
Microsemi ↗
File Size
196.48 KB
Datasheet
1N5767-Microsemi.pdf
Description
PIN Diode
Note
This datasheet PDF includes multiple part numbers: 1N5957, 1N5767.
Please refer to the document for exact specifications by model.
