1N6021BUR-1 Datasheet - Microsemi

Surface Mount 500mW Zener Diodes

1N6021BUR-1 Features

* Surface mount equivalents to JEDEC registered 1N5985 to 1N6031 series.

* Similar to operating current conditions of the BZX55 Pro Electron series of Zener products in Europe.

* Multiple voltage tolerances are available (see part nomenclature).

* Internal metallurgic

1N6021BUR-1 General Description

The popular 1N5985BUR-1 thru 1N6031BUR-1 series of 0.5 watt Zener voltage regulators provides a selection from 2.4 to 200 volts in 10%, 5%, 2% and 1% tolerances. These glass surface mount DO-213AA Zeners are also available in various military equivalent screening levels by adding a prefix identifier.

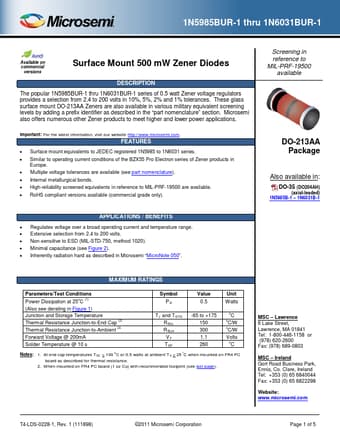

1N6021BUR-1 Datasheet (211.48 KB)
