1N6319

500mW GLASS ZENER DIODES

1N6319 Features

* JEDEC registered 1N6309 thru 1N6355 series.

* Voltage tolerances of 1%, 2% and 5% are available. (See part nomenclature.)

* Voidless hermetically seal

1N6319 General Description

This Zener voltage regulator series is military qualified and is ideal for high-reliability applications where a failure cannot be tolerated. These industry-recognized 0.5 watt Zener voltage regulators are hermetically sealed with voidless-glass construction using an internal metallurgical bond. It .

1N6319 Datasheet (232.37 KB)

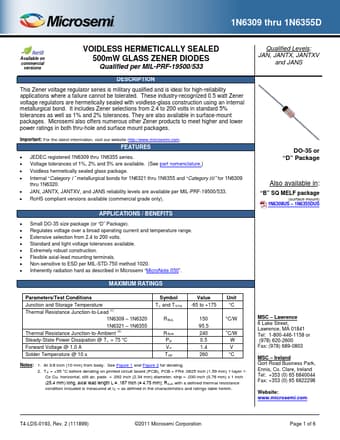

Preview of 1N6319 PDF

Datasheet Details

Part number:

1N6319

Manufacturer:

Microsemi ↗

File Size:

232.37 KB

Description:

500mw glass zener diodes.
1N6309 thru 1N6355D Available on commercial versions VOIDLESS HERMETICALLY SEALED 500mW GLASS ZENER DIODES Qualified per MIL-PRF-19500/533 DESCRIPT.
