1N6461US - (1N6461US - 1N6468US) Voidless Hermetically Sealed Unidirectional Transient Voltage Suppressors

Product Overview

Microsemi

Datasheet Details

Part number	1N6461US
Manufacturer	Microsemi
File Size	578.08 KB
Description	(1N6461US - 1N6468US) Voidless Hermetically Sealed Unidirectional Transient Voltage Suppressors
Datasheet	1N6461US Datasheet

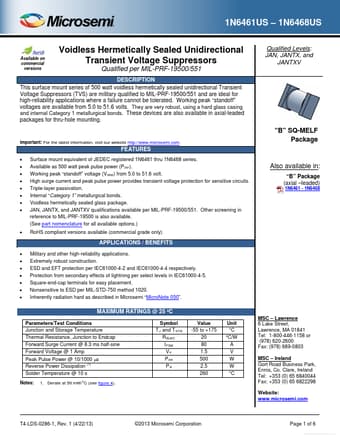

Additional preview pages of the 1N6461US datasheet.

Product details

Description

This surface mount series of 500 watt voidless hermetically sealed unidirectional Transient Voltage Suppressors (TVS) are military qualified to MIL-PRF-19500/551 and are ideal for high-reliability applications where a failure cannot be tolerated.

Features

Surface mount equivalent of JEDEC registered 1N6461 thru 1N6468 series. Available as 500 watt peak pulse power (P PP ). Working peak “standoff” voltage (V WM ) from 5.0 to 51.6 volt. High surge current and peak pulse power provides transient voltage protection for sensitive circuits. Triple-layer passivation. Internal “Category 1” metallurgical bonds. Voidless hermetically sealed glass package. JAN, JANTX, and JANTXV.
