1N6631 Datasheet PDF - Microsemi ULTRA FAST RECOVERY GLASS RECTIFIERS Specs

1N6631 - ULTRA FAST RECOVERY GLASS RECTIFIERS

This page provides the datasheet information for the 1N6631, a member of the 1N6626 ULTRA FAST RECOVERY GLASS RECTIFIERS family.

Datasheet Summary

Description

This “Ultrafast Recovery” rectifier diode series is military qualified to MIL-PRF19500/590 and is ideal for high-reliability applications where a failure cannot be tolerated.

Datasheet Details

Part number	1N6631
Manufacturer	Microsemi
File Size	223.55 KB
Description	ULTRA FAST RECOVERY GLASS RECTIFIERS
Datasheet	1N6631 Datasheet

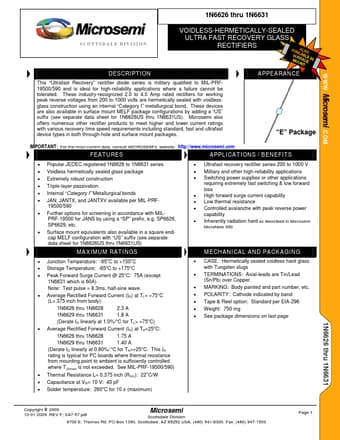

Additional preview pages of the 1N6631 datasheet.

📁 Similar Datasheet

1N6631 - ULTRA FAST RECTIFIERS (Digitron Semiconductors)

1N6631 - HYPER FAST RECOVERY RECTIFIER (SSDI)

1N6631 - ULTRAFAST RECTIFIERS (Sensitron)

1N6631A - HYPER FAST RECOVERY RECTIFIER (SSDI)

1N6631B - HYPER FAST RECOVERY RECTIFIER (SSDI)

1N6630 - ULTRA FAST RECTIFIERS (Digitron Semiconductors)

1N6630 - HYPER FAST RECOVERY RECTIFIER (SSDI)

1N6630 - ULTRAFAST RECTIFIERS (Sensitron)

1N6632 - 5 WATT ZENER DIODES (Compensated Deuices Incorporated)

1N6632 - 5 WATT GLASS ZENER DIODE (Digitron Semiconductors)

Full PDF Text Transcription

Click to expand full text

SCOTTSDALE DIVISION 1N6626 thru 1N6631 VOIDLESS-HERMETICALLY-SEALED ULTRA FAST RECOVERY GLASS RECTIFIERS WWW.Microsemi .COM DESCRIPTION This “Ultrafast Recovery” rectifier diode series is military qualified to MIL-PRF19500/590 and is ideal for high-reliability applications where a failure cannot be tolerated. These industry-recognized 2.0 to 4.0 Amp rated rectifiers for working peak reverse voltages from 200 to 1000 volts are hermetically sealed with voidlessglass construction using an internal “Category I” metallurgical bond. These devices are also available in surface mount MELF package configurations by adding a “US” suffix (see separate data sheet for 1N6626US thru 1N6631US).
