1N914 - Glass Axial Switching Diode

Datasheet Summary

Description

This 1N914 JEDEC registered switching/signal diode

Features

  • internal metallurgical bonded construction for military grade products per MIL-PRF-19500/116. This small low capacitance diode, with very fast switching speeds, is hermetically sealed and bonded into a double-plug DO-35 package. It may be used in a variety of very high speed.

📥 Download Datasheet

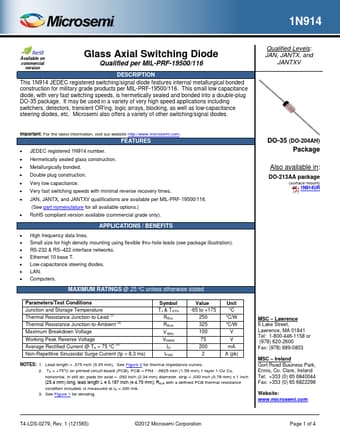

Datasheet preview – 1N914

Datasheet Details

Part number 1N914
Manufacturer Microsemi
File Size 316.95 KB
Description Glass Axial Switching Diode
Datasheet download datasheet 1N914 Datasheet
