3PMT110A - (3PMT5.0A - 3PMT170A) Low Profile 1500 Watt Transient Voltage Suppressor

This page provides the datasheet information for the 3PMT110A, a member of the 3PMT150A (3PMT5.0A - 3PMT170A) Low Profile 1500 Watt Transient Voltage Suppressor family.

Datasheet Summary

Description

These 1500 watt transient voltage suppressors offer power-handling capabilities only found in larger packages.

They are most often used for protecting against transients from inductive switching environments or induced secondary lightning effects as found in lower surge levels of IEC61000-4-5.

Features

  • include a full metallic bottom that eliminates the possibility of solder-flux entrapment during assembly. They also provide unique locking tab acting as an integral heat sink. With its very short terminations, parasitic inductance is minimized to reduce voltage overshoots during fast-rise-time transients.

📥 Download Datasheet

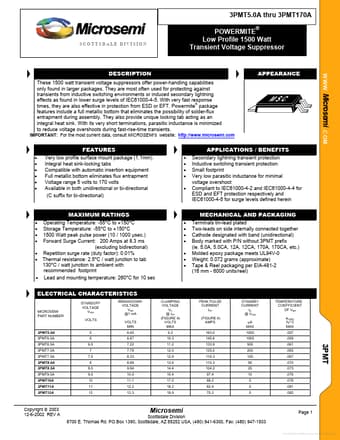

Datasheet preview – 3PMT110A

Datasheet Details

Part number 3PMT110A
Manufacturer Microsemi
File Size 471.97 KB
Description (3PMT5.0A - 3PMT170A) Low Profile 1500 Watt Transient Voltage Suppressor
Datasheet download datasheet 3PMT110A Datasheet
Additional preview pages of the 3PMT110A datasheet.
