3PMT40A - (3PMT5.0A - 3PMT170A) Low Profile 1500 Watt Transient Voltage Suppressor

Product Overview

Microsemi

Datasheet preview – 3PMT40A

Datasheet Details

Part number	3PMT40A
Manufacturer	Microsemi
File Size	471.97 KB
Description	(3PMT5.0A - 3PMT170A) Low Profile 1500 Watt Transient Voltage Suppressor
Datasheet	3PMT40A Datasheet
Note	This datasheet PDF includes multiple part numbers: 3PMT40A, 3PMT150A. Please refer to the document for exact specifications by model.

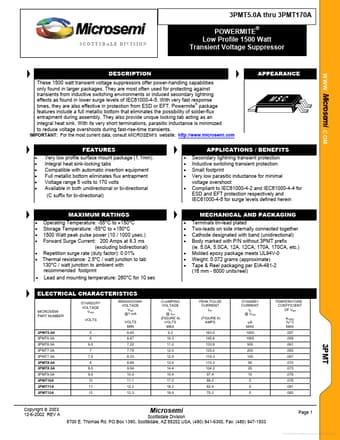

Additional preview pages of the 3PMT40A datasheet.

Product details

Description

These 1500 watt transient voltage suppressors offer power-handling capabilities only found in larger packages.

They are most often used for protecting against transients from inductive switching environments or induced secondary lightning effects as found in lower surge levels of IEC61000-4-5.

Features

include a full metallic bottom that eliminates the possibility of solder-flux entrapment during assembly. They also provide unique locking tab acting as an integral heat sink. With its very short terminations, parasitic inductance is minimized to reduce voltage overshoots during fast-rise-time transients.
