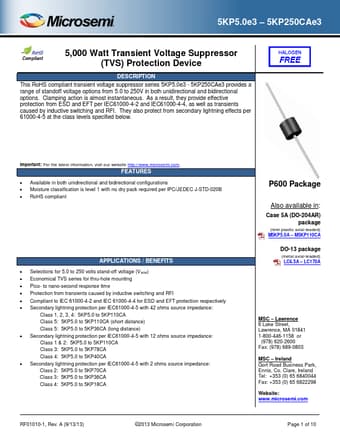

5KP120Ae3 Datasheet - Microsemi

5K-Watt Transient Voltage Suppressor Protection Device

5KP120Ae3 Features

* Available in both unidirectional and bidirectional configurations

* Moisture classification is level 1 with no dry pack required per IPC/JEDEC J-STD-020B

* RoHS compliant APPLICATIONS / BENEFITS

* Selections for 5.0 to 250 volts stand-off voltage (VWM)

* Ec

5KP120Ae3 General Description

This RoHS compliant transient voltage suppressor series 5KP5.0e3 - 5KP250CAe3 provides a range of standoff voltage options from 5.0 to 250V in both unidirectional and bidirectional options. Clamping action is almost instantaneous. As a result, they provide effective protection from ESD and EFT per I.

5KP120Ae3 Datasheet (495.17 KB)
