5KP180Ce3 - 5K-Watt Transient Voltage Suppressor Protection Device

Download the 5KP180Ce3 datasheet PDF. This datasheet also covers the 5KP5.0e3 variant, as both devices belong to the same 5k-watt transient voltage suppressor protection device family and are provided as variant models within a single manufacturer datasheet.

Description

This RoHS compliant transient voltage suppressor series 5KP5.0e3 - 5KP250CAe3 provides a range of standoff voltage options from 5.0 to 250V in both unidirectional and bidirectional options.

Clamping action is almost instantaneous.

Features

  • Available in both unidirectional and bidirectional configurations.
  • Moisture classification is level 1 with no dry pack required per IPC/JEDEC J-STD-020B.
  • RoHS compliant.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (5KP5.0e3-Microsemi.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
5KP180C 5000 Watt Axial Lead TVS GW
5KP180C Axial Lead Transient Voltage Suppressors SOCAY
5KP180C 5000W TRANSIENT VOLTAGE SUPPRESSOR WON-TOP
5KP180C Transient Voltage Suppressors HITANO
5KP180CA 5000 Watt Axial Lead TVS GW

Other Datasheets by Microsemi (Microchip)

Part Number Description
5KP180CAe3 5K-Watt Transient Voltage Suppressor Protection Device
5KP180Ae3 5K-Watt Transient Voltage Suppressor Protection Device
5KP180e3 5K-Watt Transient Voltage Suppressor Protection Device
5KP18 5000W TRANSIENT VOLTAGE SUPPRESSOR
5KP18A 5000W TRANSIENT VOLTAGE SUPPRESSOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

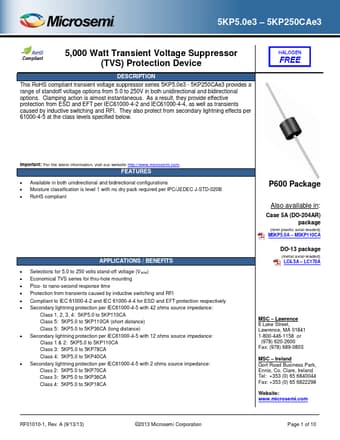

5KP5.0e3 – 5KP250CAe3 Compliant 5,000 Watt Transient Voltage Suppressor (TVS) Protection Device DESCRIPTION This RoHS compliant transient voltage suppressor series 5KP5.0e3 - 5KP250CAe3 provides a range of standoff voltage options from 5.0 to 250V in both unidirectional and bidirectional options. Clamping action is almost instantaneous. As a result, they provide effective protection from ESD and EFT per IEC61000-4-2 and IEC61000-4-4, as well as transients caused by inductive switching and RFI. They also protect from secondary lightning effects per 61000-4-5 at the class levels specified below. Important: For the latest information, visit our website http://www.microsemi.com.
