BR3514W, BR3506W Glass Passivated Single Phase Bridge Rectifiers

📥 Download Datasheet  Datasheet Preview Page 1

Description

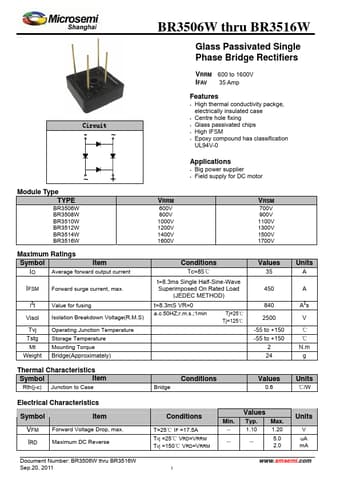

BR3506W thru BR3516W Glass Passivated Single Phase Bridge Rectifiers Circuit - VRRM 600 to 1600V IFAV 35 Amp .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BR3514W, BR3506W. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
BR3514W, BR3506W
Manufacturer
Microsemi ↗
File Size
152.82 KB
Datasheet
BR3506W-Microsemi.pdf
Description
Glass Passivated Single Phase Bridge Rectifiers
Note
This datasheet PDF includes multiple part numbers: BR3514W, BR3506W.
Please refer to the document for exact specifications by model.

Applications

* y Big power supplier y Field supply for DC motor Module Type TYPE BR3506W BR3508W BR3510W BR3512W BR3514W BR3516W Maximum Ratings Symbol Item IO Average forward output current IFSM Forward surge current, max. i2t Visol Tvj Tstg Mt Weight Value for fusing Isolation Breakdown Voltage(R. M. S) Op
