CD4765A MONOLITHIC TEMPERATURE COMPENSATED ZENER REFERENCE CHIPS

MONOLITHIC TEMPERATURE COMPENSATED ZENER REFERENCE CHIPS ALL JUNCTIONS COMPLETELY PROTECTED WITH SILICON DIOXIDE 8.5 & 9.1 VOLT NOMINAL ZENER VOLTAGE +5% ELECTRICALLY EQUIVALENT TO 1N4765 THRU 1N4772A AND 1N4775 THRU 1N4782A SERIES COMPATIBLE WITH ALL WIRE BONDING AND DIE ATTACH TECHNIQUES, WITH THE EXCEPTION OF SOLDER REFLOW CD4765 thru CD4767A and CD4770 thru CD4772A and CD4775 thru CD4777A and CD4780 thru CD4782A MAXIMUM RATINGS Operating Te.

CD4765-Microsemi.pdf

This datasheet PDF includes multiple part numbers: CD4765A, CD4765. Please refer to the document for exact specifications by model.

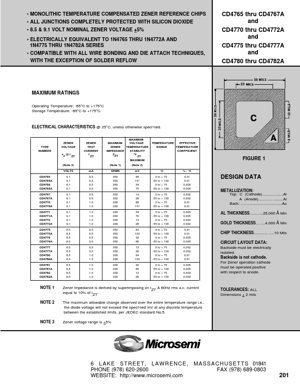

CD4765A Datasheet Preview Page 2

Datasheet Details

Part number:

CD4765A, CD4765

Manufacturer:

Microsemi ↗

File Size:

556.87 KB

Description:

Monolithic temperature compensated zener reference chips.

Note:

This datasheet PDF includes multiple part numbers: CD4765A, CD4765.
Please refer to the document for exact specifications by model.
