CDLL942, CDLL941 Datasheet - Microsemi

CDLL942 - (CDLL941 - CDLL945B) ZENER REFERENCE DIODES

1N941BUR-1, 1N943UR-1B, 1N944BUR-1 AND 1N945BUR-1 AVAILABLE IN JAN, JANTX, JANTXV AND JANS PER MIL-PRF-19500/157 TEMPERATURE COMPENSATED ZENER REFERENCE DIODES LEADLESS PACKAGE FOR SURFACE MOUNT 11.7 VOLT NOMINAL ZENER VOLTAGE METALLURGICALLY BONDED, DOUBLE PLUG CONSTRUCTION 1N941BUR-1 thru1N945BUR-1 and CDLL941 thru CDLL945B MAXIMUM RATINGS Operating Temperature: -65°C to +175°C Storage Temperature: -65°C to +175°C DC Power Dissipation: 500mW .

CDLL941_Microsemi.pdf

This datasheet PDF includes multiple part numbers: CDLL942, CDLL941. Please refer to the document for exact specifications by model.

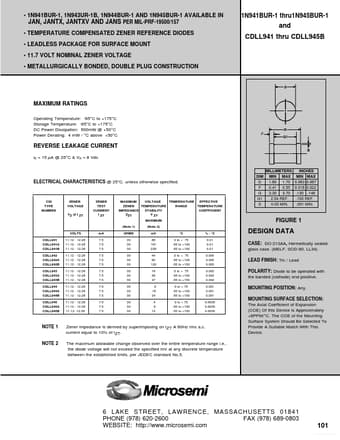

CDLL942 Datasheet Preview Page 2

Datasheet Details

Part number:

CDLL942, CDLL941

Manufacturer:

Microsemi ↗

File Size:

151.20 KB

Description:

(cdll941 - cdll945b) zener reference diodes.

Note:

This datasheet PDF includes multiple part numbers: CDLL942, CDLL941.
Please refer to the document for exact specifications by model.
