DSB1A100, DSB1A20 1 Amp Schottky Barrier Rectifiers

DSB1A100 Description

1N5818-1, 1N5819-1, 1N6759-1 * 1N6761-1 and DSB1A20 * DSB1A100 Available on commercial versions 1 Amp Schottky Barrier Rectifiers Qu.
This 1 Amp Schottky barrier rectifier is metallurgically bonded and offers military grade qualifications for the part numbers of 1N5819-1 and 1N6761-1.

DSB1A100 Features

* JEDEC registered 1N5818, 1N5819 and 1N6759 through 1N6761 numbers.
* Hermetically sealed DO-41 glass package.
* Metallurgically bonded.
* 1N5819-1 and 1N6761-1 only are available in JAN, JANTX, JANTXV and JANS qualifications per MIL-PRF-19500/586. (See part nom

DSB1A100 Applications

* This small diode is hermetically sealed and bonded into a DO-41 glass package. Qualified Levels

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DSB1A100, DSB1A20. Please refer to the document for exact specifications by model.

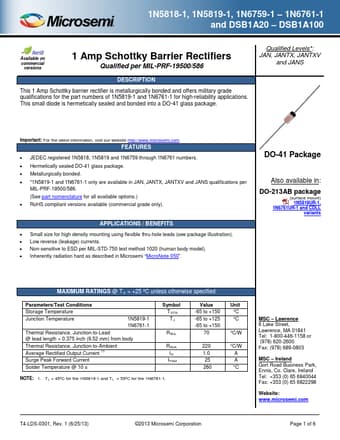

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DSB1A100, DSB1A20
Manufacturer
Microsemi ↗
File Size
309.97 KB
Datasheet
DSB1A20-Microsemi.pdf
Description
1 Amp Schottky Barrier Rectifiers
Note
This datasheet PDF includes multiple part numbers: DSB1A100, DSB1A20.
Please refer to the document for exact specifications by model.
