GBPC3502A - Glass Passivated Single Phase Bridge Rectifiers

GBPC3502A Description

GBPC3502A thru GBPC3510A Glass Passivated Single Phase Bridge Rectifiers Reverse Voltage 200 to 1000V Forward Current 35 Amp Circuit - .

GBPC3502A Features

* y Glass passivated die construction y Integrally molded heatsink provides Very low thermal resistance for Maximum heat dissipation y The plastic material used carries UL flammability recognition 94V-0 y High surge current capability y High temperature soldering guaranteed: 260℃ /10 seconds, 0.375” (

📥 Download Datasheet

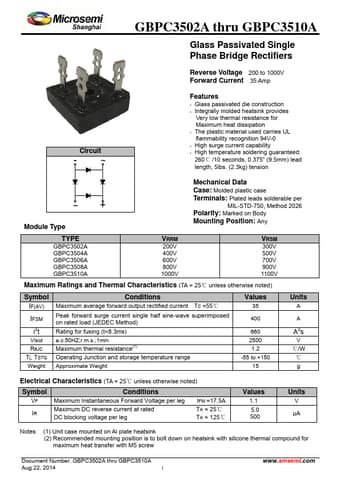

Preview of GBPC3502A PDF
datasheet Preview Page 2 datasheet Preview Page 3
