LX1911 1.5A - 1.1MHZ PWM Step-Down Regulator

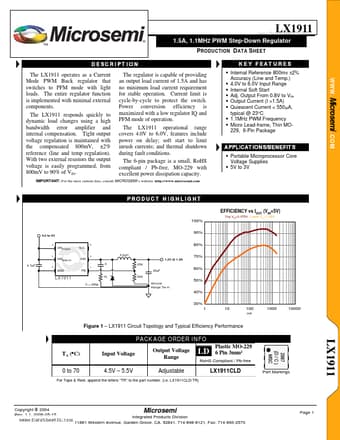

📥 Download Datasheet  Datasheet Preview Page 1

Description

www.DataSheet4U.com TM ® LX1911 1.5A, 1.1MHZ PWM Step-Down Regulator P RODUCTION D ATA S HEET .
KEY FEATURES. Internal Reference 800mv ±2% Accuracy (Line and Temp. 4. Internal Soft Start. Adj.

📥 Download Datasheet

Preview of LX1911 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
LX1911
Manufacturer
Microsemi ↗
File Size
176.34 KB
Datasheet
LX1911_Microsemi.pdf
Description
1.5A - 1.1MHZ PWM Step-Down Regulator

Features

* Internal Reference 800mv ±2% Accuracy (Line and Temp. )
* 4.0V to 6.0V Input Range
* Internal Soft Start
* Adj. Output From 0.8V to VIN
* Output Current (I >1.5A)
* Quiescent Current < 550μA, typical @ 23°C
* 1.1MHz PWM Frequency
* Micro Lead-frame, Thin MO229, 6-Pin

Applications

* BENEFITS
* Portable Microprocessor Core Voltage Supplies
* 5V to 3V The LX1911 operates as a Current Mode PWM Buck regulator that switches to PFM mode with light loads. The entire regulator function is implemented with minimal external components. The LX1911 responds quickly to dynamic load
