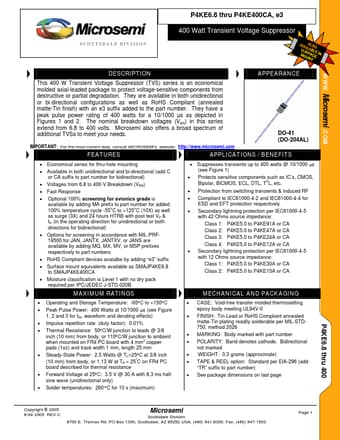

P4KE20 Datasheet 400 Watt Transient Voltage Suppressor

Manufacturer: Microsemi (now Microchip Technology)

Download the P4KE20 datasheet PDF. This datasheet also includes the P4KE6.8 variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (P4KE6.8-Microsemi.pdf) that lists specifications for multiple related part numbers.

General Description

APPEARANCE This 400 W Transient Voltage Suppressor (TVS) series is an economical molded axial-leaded package to protect voltage-sensitive components from destructive or partial degradation.

They are available in both unidirectional or bi-directional configurations as well as RoHS Compliant (annealed matte-Tin finish) with an e3 suffix added to the part number.

They have a peak pulse power rating of 400 watts for a 10/1000 µs as depicted in Figures 1 and 2.

Overview

SCOTTSDALE DIVISION P4KE6.8 thru P4KE400CA, e3 400 Watt Transient Voltage Suppressor WWW.Microsemi .
