PD-9002GHO - Outdoor PoE Passive Hub

Description

2-port, 30W Gigabit PoE outdoor midspan with North American power connector 2-port, 30W Gigabit PoE outdoor midspan with international power cord Mounting brackets for outdoor unit http://www.DataSheet4U.com/ PD-9002GHO/AC-INTL 802.3at PowerDsine 9002GHO PD-OUT/MBK PowerDsine OUT MBK For More I

Features

  • Outdoor rated: IP66.
  • Extended temperature range -40ºC , +55ºC.
  • IEEE802.3at standard compliant.
  • Power provided on both RJ45 connectors.
  • Data connectivity between all RJ45 connectors.
  • Supports 10/100/1000Mbps data rates.
  • Plug ‘n Play installation (installer does not have to open unit).
  • Supports both 802.3af and 802.3at Powered devices.
  • Includes integral surge protection PD-9002GHO Midspan PD-9002GHO with outdoor mou.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
PD-20 0 Power Dividers / Combiners Merrimac Industries
PD-3100 WDM PIN PHOTODIODES Optoway Technology
PD-5100 WDM PIN PHOTODIODES Optoway Technology
PD-CP42AU Industrial LCD Canvys
PD-NPM-0305EP DSL NTU POWER MODULE PowerDsine

Other Datasheets by Microsemi (Microchip)

Part Number Description
PD-9501GO Power Over Ethernet

Full PDF Text Transcription

Click to expand full text

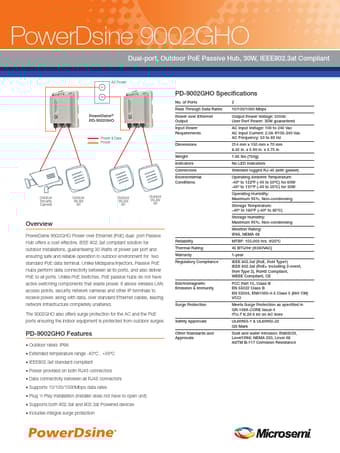

PowerDsine 9002GHO Dual-port, Outdoor PoE Passive Hub, 30W, IEEE802.3at Compliant AC Power PD-9002GHO Specifications No. of Ports Pass Through Data Rates PowerDsine® PD-9002GHO Power over Ethernet Output Input Power Requirements Power & Data Power 2 10/100/1000 Mbps Output Power Voltage: 55Vdc User Port Power: 30W guaranteed AC Input Voltage: 100 to 240 Vac AC Input Current: 2.0A @100-240 Vac AC Frequency: 50 to 60 Hz 214 mm x 150 mm x 70 mm 8.42 in. x 5.90 in. x 2.75 in 1.
