SMBG30A

Transient Voltage Suppressor

SMBG30A Features

* Economical surface mount design in both J-bend or Gull-wing terminations Available in both unidirectional and bidirectional construction (add C or CA suffix for bidirectional) Selections for 5.0 to 170 volts standoff voltages (VWM) Suppress

SMBG30A General Description

This SMBJ5.0-170A or SMBG5.0-170A series of surface mount 600 W Transient Voltage Suppressors (TVSs) protects a variety of voltage-sensitive components from destruction or degradation. It is available in J-bend design (SMBJ) with the DO-214AA package for greater PC board mounting density or in a Gul.

SMBG30A Datasheet (221.27 KB)

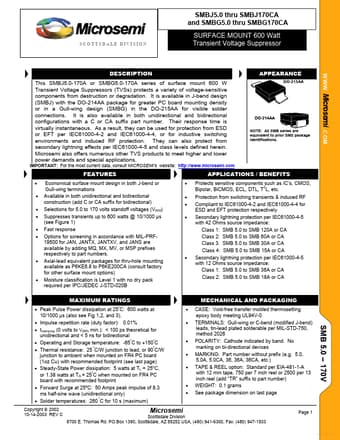

Preview of SMBG30A PDF

Datasheet Details

Part number:

SMBG30A

Manufacturer:

Microsemi ↗

File Size:

221.27 KB

Description:

Transient voltage suppressor.
