SMBJ78A Datasheet - Microsemi

Transient Voltage Suppressor

SMBJ78A Features

* Economical surface mount design in both J-bend or Gull-wing terminations Available in both unidirectional and bidirectional construction (add C or CA suffix for bidirectional) Selections for 5.0 to 170 volts standoff voltages (VWM) Suppress

SMBJ78A General Description

This SMBJ5.0-170A or SMBG5.0-170A series of surface mount 600 W Transient Voltage Suppressors (TVSs) protects a variety of voltage-sensitive components from destruction or degradation. It is available in J-bend design (SMBJ) with the DO-214AA package for greater PC board mounting density or in a Gul.

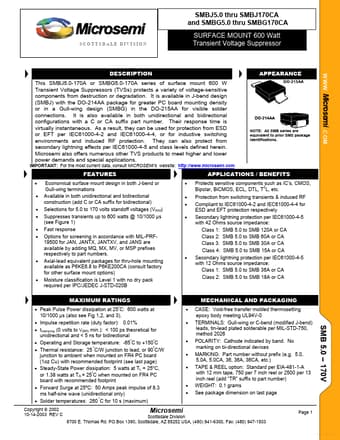

SMBJ78A Datasheet (115.41 KB)
