UM2100

ATTENUATOR AND POWER PIN DIODES

UM2100 Features

* HF band (2-30 MHz) PIN

* Long Lifetime (25μs typical)

* High Power ( 1kW, CW)

* High Isolation (32dB)

* Low Loss (0.25dB)

* Very Low Distortion (IP3=60dBm)

* Voltage ratings to 1000 V

* RoHS compliant packaging Available1 (use UMX2101B, etc.) ABSOLUTE MAXIMUM RATIN

UM2100 General Description

UM2100 Series PIN diodes are designed for transmit/receive switch and attenuator applications in HF band (2-30MHz) and below. As series configured switches, these long lifetime (25μs typical) diodes can control up to 2.5 kW, CW in a 50 ohm system. In HF band, insertion loss is less than 0.25dB and i.

UM2100 Datasheet (422.83 KB)

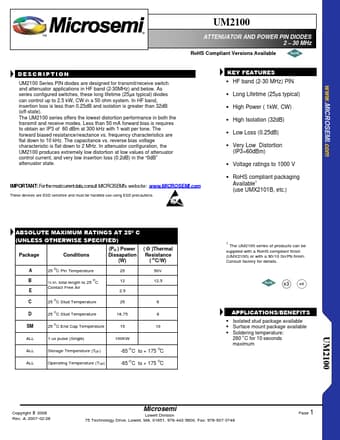

Preview of UM2100 PDF

Datasheet Details

Part number:

UM2100

Manufacturer:

Microsemi ↗

File Size:

422.83 KB

Description:

Attenuator and power pin diodes.
