2N4392 Datasheet - Micross

2N4392, Single N-Channel JFET

2N4392 Single N-Channel JFET switch Linear Systems replaces discontinued Siliconix 2N4392 .

datasheet Preview Page 1 from Datasheet4u.com

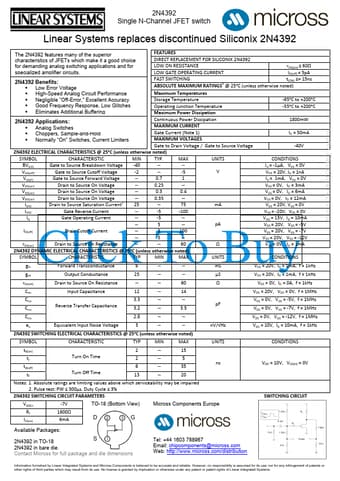

2N4392_Micross.pdf

2N4392 Datasheet Preview — Preview of 2N4392 PDF

Datasheet Details

Part number:

2N4392

Manufacturer:

Micross

File Size:

310.91 KB

Description:

Single N-Channel JFET

Features

* DIRECT REPLACEMENT FOR SILICONIX 2N4392 LOW ON RESISTANCE rDS(on) ≤ 60Ω LOW GATE OPERATING CURRENT ID(off) = 5pA FAST SWITCHING t(ON) ≤= 15ns 2N4392 Benefits: ABSOLUTE MAXIMUM RATINGS1 @ 25°C (unless otherwise noted)
* Low Error Voltage Maximum Temperatures
* High-Speed Analog Circ

Applications

* MAXIMUM CURRENT
* Analog Switches Gate Current (Note 1) IG = 50mA
* Choppers, Sample-and-Hold MAXIMUM VOLTAGES
* Normally “On” Switches, Current Limiters Gate to Drain Voltage / Gate to Source Voltage ‐40V 2N4392 ELECTRICAL CHARACTERISTICS @ 25°C (unless otherwise noted) SYMBOL
