M3GB12005D, M3GB12003R3S, Hybrid - High Reliability Radiation Hardened DC-DC Converter

M3GB-SERIES Hybrid * High Reliability Radiation Hardened DC-DC Converter 120V Input, Single and Dual Output PD-97908D .
and Circuit Description Table 1 Ordering Information Reference IR Base Model M3GB12003R3S/CKA M3GB12003R3S/CKC M3GB12005S/CKA M3GB12005S/CKC M3GB12.

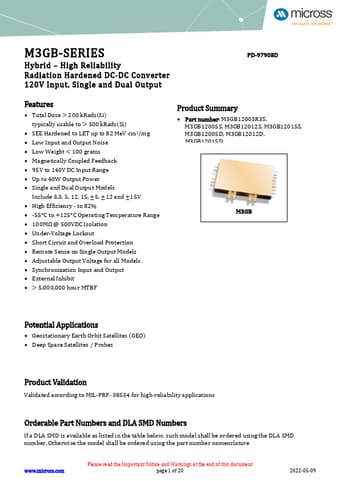

datasheet Preview Page 1 from Datasheet4u.com

M3GB12003R3S-Micross.pdf

M3GB12005D Datasheet Preview — This datasheet PDF includes multiple part numbers: M3GB12005D, M3GB12003R3S. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

M3GB12005D, M3GB12003R3S

Manufacturer:

Micross

File Size:

814.31 KB

Description:

Hybrid - High Reliability Radiation Hardened DC-DC Converter

Note:

This datasheet PDF includes multiple part numbers: M3GB12005D, M3GB12003R3S.
Please refer to the document for exact specifications by model.

Features

* Total Dose > 200 kRads(Si) typically usable to > 300 kRads(Si)
* SEE Hardened to LET up to 82 MeV
* cm2/mg
* Low Input and Output Noise
* Low Weight < 100 grams
* Magnetically Coupled Feedback
* 95V to 140V DC Input Range
* Up to 40W Output

Applications

* Geostationary Earth Orbit Satellites (GEO)
* Deep Space Satellites / Probes Product Validation Validated according to MIL-PRF- 38534 for high-reliability applications Orderable Part Numbers and DLA SMD Numbers If a DLA SMD is available as listed in the table below, such model sha
