SST505 - Current Reg. Diode

Product Overview

Micross

Datasheet Details

Part number	SST505
Manufacturer	Micross
File Size	336.48 KB
Description	Current Reg. Diode
Datasheet	SST505 Datasheet

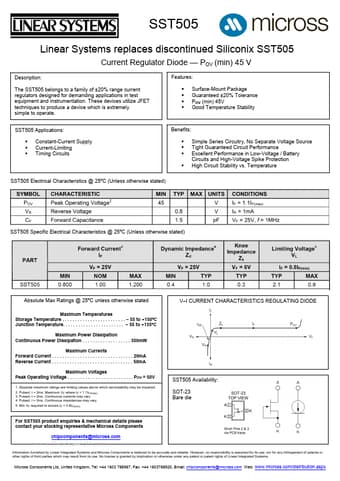

Additional preview pages of the SST505 datasheet.

Product details

Description

The SST505 belongs to a family of ±20% range current regulators designed for demanding applications in test equipment and instrumentation. Constant-Current Supply Current-Limiting Timing Circuits

Features

Surface-Mount Package Guaranteed ±20% Tolerance POV (min) 45V Good Temperature Stability Benefits:.
Simple Series Circuitry, No Separate Voltage Source Tight Guaranteed Circuit Performance Excellent Performance in Low-Voltage / Battery Circuits and High-Voltage Spike Protection High Circuit Stability vs. Temperature SST505 Electrical Characteristics @ 25ºC (Unless otherwise stated) SST505 Specific Electrical Characteristics @ 25ºC (Unless otherw.
