MPC560 - High Accuracy Analog and Digital I/O

MPC560 Description

High Accuracy Analog and Digital I/O for PC/104 MPC560 .

MPC560 Features

*          32 channels of 16-bit analog input Fault protection on analog/digital Ultra-low noise design DSP and noise analysis software Low-pass filtering 14-bit, 4-channel DAC Digital I/O, Counter/Timer 5V only operation from PC/104 Extended temperature range available www. DataSheet4U. com

📥 Download Datasheet

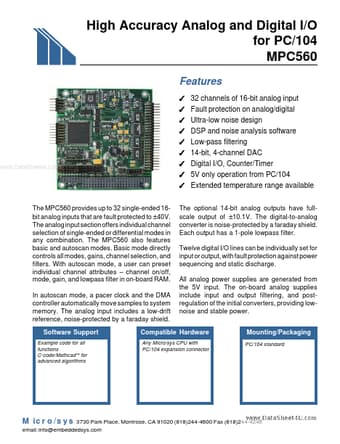

Preview of MPC560 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MPC560
Manufacturer
Microsys
File Size
52.58 KB
Datasheet
MPC560_Microsys.pdf
Description
High Accuracy Analog and Digital I/O
