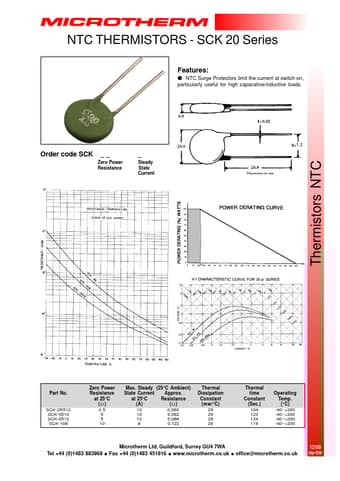

q NTC Surge Protectors limit the current at switch on,
particularly useful for high capacative/inductive loads. 1.2
Order code SCK
__
Zero Power Resistance
_
Steady State Current
Part No. SCK-2R512 SCK-0510 SCK-0512 SCK-108
Zero Power Resistance at 25°C (W) 2.5 5 5 10
Max. Steady (25°C Ambient) State Current Approx. at 25°C Resistance (A) ( W) 12 0.060 10 0.082 12 0.066 8 0.122
Thermal Dissipation Constant (mw/°C) 29 29 29 29
Thermal time Constant (Sec. ) 104 123 124 119
Operating Tem.
