SCK2R512 - NTC THERMISTORS - SCK 20 Series

Product Overview

Microtherm

Part number	SCK2R512
Manufacturer	Microtherm
File Size	161.99 KB
Description	NTC THERMISTORS - SCK 20 Series
Datasheet	SCK2R512 Datasheet
Note	This datasheet PDF includes multiple part numbers: SCK2R512, SCK-2R512. Please refer to the document for exact specifications by model.

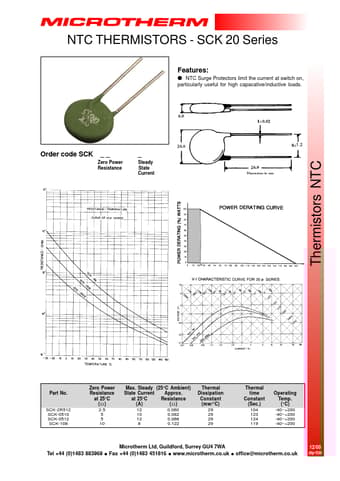

Additional preview pages of the SCK2R512 datasheet.

q NTC Surge Protectors limit the current at switch on, particularly useful for high capacative/inductive loads. 1.2 Order code SCK __ Zero Power Resistance _ Steady State Current Part No. SCK-2R512 SCK-0510 SCK-0512 SCK-108 Zero Power Resistance at 25°C (W) 2.5 5 5 10 Max. Steady (25°C Ambient) State Current Approx. at 25°C Resistance (A) ( W) 12 0.060 10 0.082 12 0.066 8 0.122 Thermal Dissipation Constant (mw/°C) 29 29 29 29 Thermal time Constant (Sec. ) 104 123 124 119 Operating Tem.
