AN960C8L Datasheet FLAT WASHER

Manufacturer: Military-Fasteners

Download the AN960C8L datasheet PDF. This datasheet also includes the AN960C8L-military variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

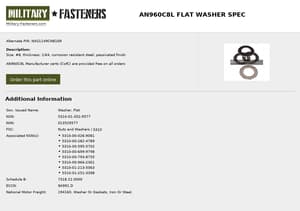

AN960C8L flat washer by Military-Fasteners - Datasheet Preview — Note: The manufacturer provides a single datasheet file (AN960C8L-military-fasteners.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	AN960C8L
Manufacturer	Military-Fasteners
File Size	1.25 MB
Description	FLAT WASHER
Datasheet	AN960C8L Datasheet

General Description

: Size: #8, thickness: 1/64, corrosion resistant steel, passivated finish AN960C8L Manufacturer certs (CofC) are provided free on all orders Order this part online Additional Information Gov.

Issued Name: NSN: NIIN: FSC: Associated NSN(s): Schedule B: ECCN: National Motor Freight: Washer, Flat 5310-01-352-9577 013529577 Nuts and Washers / 5310 5310-00-026-9081 5310-00-282-4789 5310-00-595-5702 5310-00-699-9798 5310-00-793-8755 5310-00-966-2361 5310-01-213-5063 5310-01-251-3398 7318.22.0000 9A991.D 194160, Washer Or Gaskets, Iron Or Steel, Manufacturer Country: United States See page 2 for technical characteristics AN960C8L Specifications Center Hole Shape Style: Cross-sectional Shape Style: Hole Diameter: Material: Overall Diameter: Material Document And Classification: Peripheral Shape Style: Surface Treatment: Thickness: Round Rectangular 0.164 Inches Minimum And 0.184 Inches Maximum Steel Corrosion Resisting Overall Or Steel Comp 321 Overall Or Steel Comp 347 Overall Or Steel Comp 348 Overall 0.370 Inches Minimum And 0.395 Inches Maximum Mil-s-5059 Mil Spec 1st Material Response Overall And Mil-s-6721 Mil Spec 2nd Material Response Overall And Mil-s-6721 Mil Spec 3rd Material Response Overall And Mil-s-6721 Mil Spec 4th Material Response Overall Round Passivate Overall 0.006 Inches Minimum And 0.026 Inches Maximum How to Order Order this flat washer from our inventory online by visiting https://military-fasteners.com/washers/flat-washers/AN960C8L and selecting the quantity you want then click "add to cart".

Once items are in your cart you can check out here to complete your order.

Overview

Military-Fasteners.com AN960C8L FLAT WASHER SPEC Alternate P/N:.
