0435-0-15-01-03-27-10-0, 0435-0-15-01-03-27-10-0-Mill - Connector

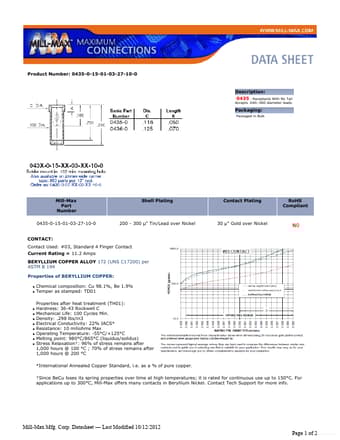

0435-0-15-01-03-27-10-0 Datasheet Preview — This datasheet PDF includes multiple part numbers: 0435-0-15-01-03-27-10-0, 0435-0-15-01-03-27-10-0-Mill. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	0435-0-15-01-03-27-10-0, 0435-0-15-01-03-27-10-0-Mill
Manufacturer	Mill-Max
File Size	154.47 KB
Description	Connector
Datasheet	0435-0-15-01-03-27-10-0-Mill-Max.pdf
Note	This datasheet PDF includes multiple part numbers: 0435-0-15-01-03-27-10-0, 0435-0-15-01-03-27-10-0-Mill. Please refer to the document for exact specifications by model.

0435-0-15-01-03-27-10-0 Product details

Description

0435 - Receptacle With No Tail Accepts .040-.060 diameter leads.Packaging: Packaged in Bulk Mill-Max Part Number 0435-0-15-01-03-27-10-0 Shell Plating Contact Plating RoHS Compliant 200 - 300 μ" Tin/Lead over Nickel 30 μ" Gold over Nickel CONTACT: Contact Used: #03, Standard 4 Finger Contact Current Rating = 11.2 Amps BERYLLIUM COPPER ALLOY 172 (UNS C17200) per ASTM B 194 Properties of BERYLLIUM COPPER: Chemical composition: Cu 98.1%, Be 1.9% Temper as stamped: TD01 Properties after

Features

verified to be within tolerances described on the applicable drawing). Raw Material (materials and properties verified to be as described on the applicable drawing). Plating (platings as required, thickness verified, and performance including solderability per mil-standard). Performance (insertion extraction or other force requirements as described on the applicable drawing). Compliance Statement for Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Reference: 1. Reg.
