940-44-0xx-17-x00000, 940-44-044-17-400000_Mill Datasheet - Mill-Max

940-44-0xx-17-x00000 - PLCC Sockets

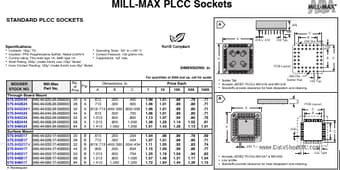

MILL-MAX PLCC Sockets STANDARD PLCC SOCKETS A .325 .130 A .018 x .010 .100 Typ.

C B .035 Dia.

Hole .100 Specifications: Contacts: 150μ” Tin Operating Temp: -55° to +105° C Insulator: PPS Polyphenylene Sulfide, Rated UL94V-0 Contact Pressure: 150 grams min.

Current rating: Thru-hole type 1A, SMD type 1A Capacitance: 1pF max.

Shell Plating: 200μ” (matte finish) over 100μ” Nickel Inner Contact Planting: 100μ” (matte

940-44-044-17-400000_Mill-Max.pdf

This datasheet PDF includes multiple part numbers: 940-44-0xx-17-x00000, 940-44-044-17-400000_Mill. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

940-44-0xx-17-x00000, 940-44-044-17-400000_Mill

Manufacturer:

Mill-Max

File Size:

367.80 KB

Description:

Plcc sockets.

Note:

This datasheet PDF includes multiple part numbers: 940-44-0xx-17-x00000, 940-44-044-17-400000_Mill.
Please refer to the document for exact specifications by model.
