MT705 - Load Cell

MT705 Description

MT705 Load Cell .

MT705 Features

* Hermitically Sealed, IP68 Laser welded Stainless Steel Casing Excellent self centering Specifications Capacity Combined Error Creep (30 minutes) Temperature effect on sensitivity Temperature effect on zero Output sensitivity Input resistance Output resistance Insulation resistance Zero balance Tempe

MT705 Applications

* Hopper , Tank and Silo Weighing Process Weighing Truck scales High Capacity Scales t (%FS) %FS/30min (%FS/10C) (%FS/10C) (mv/v) (Ω) (Ω) (MΩ) (%FS) ( ℃) ( ℃) (V) (V) (%FS) (%FS) 5, 10, 20 ,30t and 50t ≤±0.030 ≤±0.025 ≤±0.015 ≤±0.020 1.5±0.01 670+/-15 600 +/-6 ≥ 5000 (50VDC) 1.0 -10～+50 -25～+65 5～12

📥 Download Datasheet

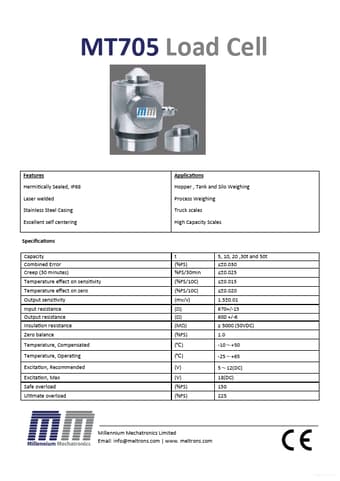

Preview of MT705 PDF
datasheet Preview Page 2
