M21564, M21544 Datasheet - Mindspeed

M21564, M21544, 3G/HD/SD-SDI Long Reach Adaptive Cable Equalizer

M21544, M21554, M21564 3G/HD/SD-SDI Long Reach Adaptive Cable Equalizer with Integrated Jitter Cleaner The M21544/54/64 are multi-rate, highly integ.
June 2013 November September 2012 May 2012 June 2011 Updated ordering information and marking diagram Updated electrical specifications including ma.

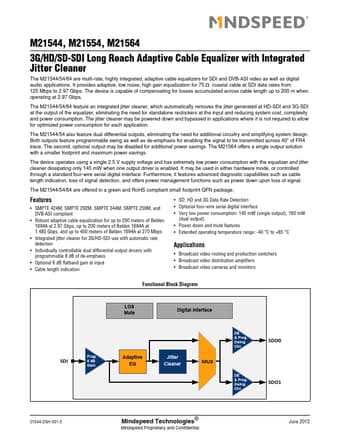

datasheet Preview Page 1 from Datasheet4u.com

M21544-Mindspeed.pdf

M21564 Datasheet Preview — This datasheet PDF includes multiple part numbers: M21564, M21544. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

M21564, M21544

Manufacturer:

Mindspeed

File Size:

759.81 KB

Description:

3G/HD/SD-SDI Long Reach Adaptive Cable Equalizer

Note:

This datasheet PDF includes multiple part numbers: M21564, M21544.
Please refer to the document for exact specifications by model.

Features

* advanced diagnostic capabilities such as cable length indication, loss of signal detection, and offers power management functions such as power down upon loss of signal. The M21544/54/64 are offered in a green and RoHS compliant small footprint QFN package. Features
* SMPTE 424M, SMPTE 292
