ADP-2-10, ADP-2-10_Mini, Power Splitter/Combiner

Surface Mount Power Splitter/Combiner 2 Way-0° Maximum Ratings Operating Temperature Storage Temperature Power Input (as a splitter) Internal Dissipa.

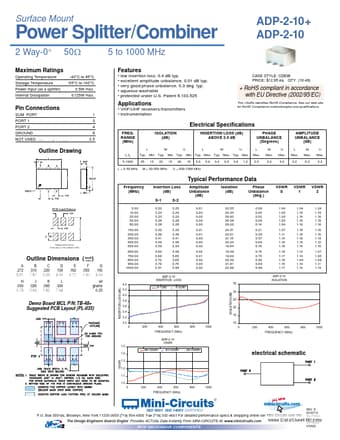

datasheet Preview Page 1 from Datasheet4u.com

ADP-2-10_Mini-Circuits.pdf

ADP-2-10 Datasheet Preview — This datasheet PDF includes multiple part numbers: ADP-2-10, ADP-2-10_Mini. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ADP-2-10, ADP-2-10_Mini

Manufacturer:

Mini-Circuits

File Size:

138.53 KB

Description:

Power Splitter/Combiner

Note:

This datasheet PDF includes multiple part numbers: ADP-2-10, ADP-2-10_Mini.
Please refer to the document for exact specifications by model.

Features

* low insertion loss, 0.4 dB typ.
* excellent amplitude unbalance, 0.01 dB typ.
* very good phase unbalance, 0.3 deg. typ.
* aqueous washable
* protected under U. S. Patent 6,133,525 CASE STYLE: CD636 PRICE: $12.95 ea. QTY. (10-49) + RoHS compliant in accordan

Applications

* VHF/UHF receivers/transmitters
* instrumentation Electrical Speciﬁcations FREQ. RANGE (MHz) L fL-fU 5-1000 L = 5-50 MHz ISOLATION (dB) M U INSERTION LOSS (dB) ABOVE 3.0 dB L M U PHASE UNBALANCE (Degrees) L Max. 2.0 M Max. 2.0 U Max. 3.0 AMPLITUDE UNBALANCE (dB) L Max. 0.2 M Ma
