ADP-2-1W, ADP-2-1W-Mini, Power Splitter/Combiner

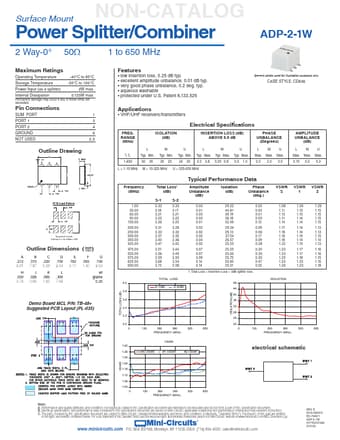

Surface Mount NON-CATALOG Power Splitter/Combiner ADP-2-1W 2 Way-0° 50Ω 1 to 650 MHz Maximum Ratings Operating Temperature -40°C to 85°C Stora.

datasheet Preview Page 1 from Datasheet4u.com

ADP-2-1W-Mini-Circuits.pdf

ADP-2-1W Datasheet Preview — This datasheet PDF includes multiple part numbers: ADP-2-1W, ADP-2-1W-Mini. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ADP-2-1W, ADP-2-1W-Mini

Manufacturer:

Mini-Circuits

File Size:

254.90 KB

Description:

Power Splitter/Combiner

Note:

This datasheet PDF includes multiple part numbers: ADP-2-1W, ADP-2-1W-Mini.
Please refer to the document for exact specifications by model.

Features

* low insertion loss, 0.25 dB typ.
* excellent amplitude unbalance, 0.01 dB typ.
* very good phase unbalance, 0.2 deg. typ.
* aqueous washable
* protected under U. S. Patent 6,133,525 Generic photo used for illustration purposes only CASE STYLE: CD636 Applica

Applications

* VHF/UHF receivers/transmitters Electrical Specifications FREQ. RANGE (MHz) ISOLATION (dB) INSERTION LOSS (dB) ABOVE 3.0 dB PHASE UNBALANCE (Degrees) fL-fU 1-650 L Typ. Min. 30 20 M Typ. Min. 30 20 U Typ. Min. 24 20 L M U Typ. Max. Typ. Max. Typ. Max. 0.2 0.8 0.25 0.8 0.5 1.0
