ADP-2-4, ADP-2-4_Mini Datasheet - Mini-Circuits

ADP-2-4, ADP-2-4_Mini, Power Splitter/Combiner

Surface Mount Power Splitter/Combiner 2 Way-0° Maximum Ratings Operating Temperature Storage Temperature Power Input (as a splitter) Internal Dissipa.

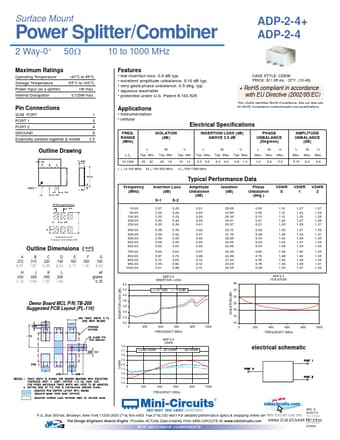

datasheet Preview Page 1 from Datasheet4u.com

ADP-2-4_Mini-Circuits.pdf

ADP-2-4 Datasheet Preview — This datasheet PDF includes multiple part numbers: ADP-2-4, ADP-2-4_Mini. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ADP-2-4, ADP-2-4_Mini

Manufacturer:

Mini-Circuits

File Size:

142.52 KB

Description:

Power Splitter/Combiner

Note:

This datasheet PDF includes multiple part numbers: ADP-2-4, ADP-2-4_Mini.
Please refer to the document for exact specifications by model.

Features

* low insertion loss, 0.4 dB typ.
* excellent amplitude unbalance, 0.10 dB typ.
* very good phase unbalance, 0.5 deg. typ.
* aqueous washable
* protected under U. S. Patent 6,133,525 CASE STYLE: CD636 PRICE: $11.95 ea. QTY. (10-49) + RoHS compliant in accordan

Applications

* instrumentation
* cellular Electrical Speciﬁcations FREQ. RANGE (MHz) L fL-fU 10-1000 L = 10-100 MHz Typ. Min. 25 20 ISOLATION (dB) M Typ. Min. 23 16 U Typ. Min. 19 14 INSERTION LOSS (dB) ABOVE 3.0 dB L Typ. Max. 0.3 0.5 M Typ. Max. 0.4 0.9 U Typ. Max. 0.8 1.5 PHASE UNBALANCE (
