AMK-2-13+, AMK-2-13+-Mini Datasheet - Mini-Circuits

AMK-2-13+ - Frequency Multiplier

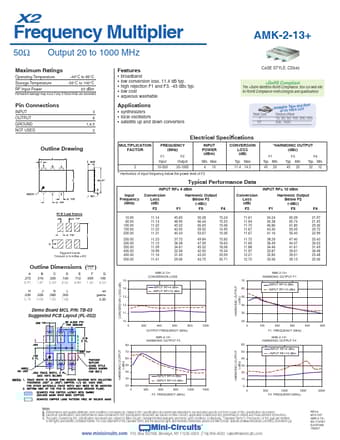

X2 Frequency Multiplier 50Ω Output 20 to 1000 MHz AMK-2-13+ Maximum Ratings Operating Temperature -40°C to 85°C Storage Temperature -55°C to 100°C RF Input Power 23 dBm Permanent damage may occur if any of these limits are exceeded.

Pin Connections INPUT 3 OUTPUT 6 GROUND 1,4,5 NOT USED 2 Outline Drawing PCB Land Pattern Suggested Layout, Tolerance to be within ± .002 Outline Dimensions ( inch mm ) A B C D E F G .272 .310 .220 .100 .112 .055 .100 6.91 7.87

AMK-2-13+ Features

* broadband

* low conversion loss, 11.4 dB typ.

* high rejection F1 and F3, -45 dBc typ.

* low cost

* aqueous washable Applications

* synthesizers

* local oscillators

* satellite up and down converters CASE STYLE: CD542 +RoHS Complian

AMK-2-13+-Mini-Circuits.pdf

This datasheet PDF includes multiple part numbers: AMK-2-13+, AMK-2-13+-Mini. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

AMK-2-13+, AMK-2-13+-Mini

Manufacturer:

Mini-Circuits

File Size:

223.89 KB

Description:

Frequency multiplier.

Note:

This datasheet PDF includes multiple part numbers: AMK-2-13+, AMK-2-13+-Mini.
Please refer to the document for exact specifications by model.
