BFCN-2975+ Band Pass Filter

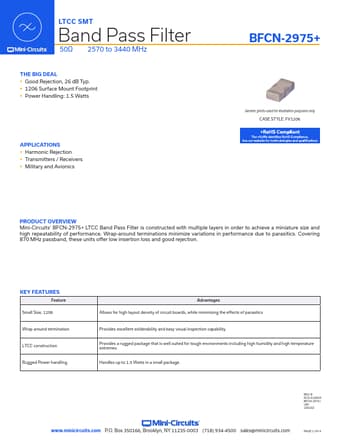

LTCC SMT Band Pass Filter 50Ω 2570 to 3440 MHz THE BIG DEAL y Good Rejection, 26 dB Typ. y 1206 Surface Mount Footprint y Power Handling: 1.5 Watts APPLICATIONS y Harmonic Rejection y Transmitters / Receivers y Military and Avionics BFCN-2975+ Generic photo used for illustration purposes only CASE STYLE: FV1206 PRODUCT OVERVIEW Mini-Circuits’ BFCN-2975+ LTCC Band Pass Filter is constructed with multiple layers in order to achieve a miniature size and high repeatability of performance. Wrap-aro.

BFCN-2975+ Features

* Feature Small Size, 1206 Wrap around termination LTCC construction Rugged Power handling Advantages Allows for high layout density of circuit boards, while minimizing the effects of parasitics Provides excellent solderability and easy visual inspection capability. Provides a rugged package that is

BFCN-2975+-Mini-Circuits.pdf

This datasheet PDF includes multiple part numbers: BFCN-2975+, BFCN-2975+-Mini. Please refer to the document for exact specifications by model.
BFCN-2975+ Datasheet Preview Page 2 BFCN-2975+ Datasheet Preview Page 3

Datasheet Details

Part number:

BFCN-2975+, BFCN-2975+-Mini

Manufacturer:

Mini-Circuits

File Size:

480.10 KB

Description:

Band pass filter.

Note:

This datasheet PDF includes multiple part numbers: BFCN-2975+, BFCN-2975+-Mini.
Please refer to the document for exact specifications by model.
