BFCN-4100+ Bandpass Filter

Ceramic Bandpass Filter 50Ω 3700 to 4500 MHz The Big Deal Flat group delay (±45 pS) Narrow band/fast roll-off in LTCC Good passband VSWR (1.2:1 typical) BFCN-4100+ CASE STYLE: FV1206 Product Overview The BFCN-4100+ LTCC Bandpass Filter is constructed using multilayer ceramic technology to achieve miniature size and high repeatability of performance. Wrap-around terminations minimize variations in performance due to parasitics. Covering 4100 MHz ±400 MHz, these uni.

BFCN-4100+ Features

* Feature Flat group delay (±45pS) Advantages The model has flat group delay which ensures low distortion. Sharp shape factor Sharp shape factor helps in adjacent channel rejection and hence increased selectivity. Good VSWR, 1.2:1 typical over passband This provides well matched input and output p

BFCN-4100+-Mini-Circuits.pdf

This datasheet PDF includes multiple part numbers: BFCN-4100+, BFCN-4100+-Mini. Please refer to the document for exact specifications by model.

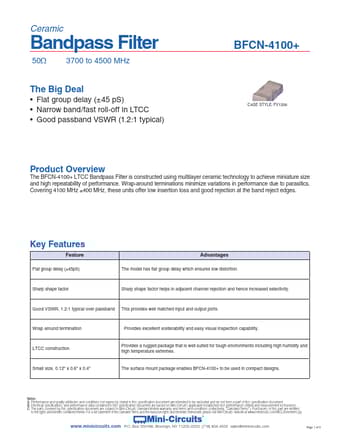

BFCN-4100+ Datasheet Preview Page 2 BFCN-4100+ Datasheet Preview Page 3

Datasheet Details

Part number:

BFCN-4100+, BFCN-4100+-Mini

Manufacturer:

Mini-Circuits

File Size:

330.39 KB

Description:

Bandpass filter.

Note:

This datasheet PDF includes multiple part numbers: BFCN-4100+, BFCN-4100+-Mini.
Please refer to the document for exact specifications by model.
