BFCN-8650+ LTCC Bandpass Filter

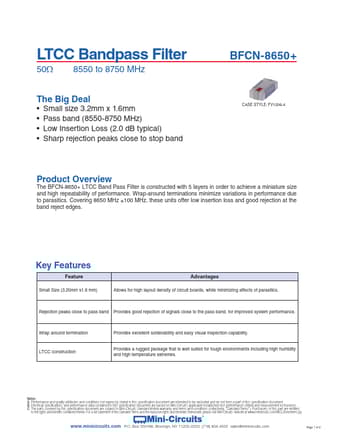

LTCC Bandpass Filter 50Ω 8550 to 8750 MHz The Big Deal Small size 3.2mm x 1.6mm Pass band (8550-8750 MHz) Low Insertion Loss (2.0 dB typical) Sharp rejection peaks close to stop band BFCN-8650+ CASE STYLE: FV1206-4 Product Overview The BFCN-8650+ LTCC Band Pass Filter is constructed with 5 layers in order to achieve a miniature size and high repeatability of performance. Wrap-around terminations minimize variations in performance due to parasitics. Cover.

BFCN-8650+ Features

* Feature Small Size (3.20mm x1.6 mm) Advantages Allows for high layout density of circuit boards, while minimizing affects of parasitics. Rejection peaks close to pass band Provides good rejection of signals close to the pass band, for improved system performance. Wrap around termination LTCC cons

BFCN-8650+-Mini-Circuits.pdf

BFCN-8650+ Datasheet Preview — This datasheet PDF includes multiple part numbers: BFCN-8650+, BFCN-8650+-Mini. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

BFCN-8650+, BFCN-8650+-Mini

Manufacturer:

Mini-Circuits

File Size:

304.34 KB

Description:

Ltcc bandpass filter.

Note:

This datasheet PDF includes multiple part numbers: BFCN-8650+, BFCN-8650+-Mini.
Please refer to the document for exact specifications by model.
