BLK-89-S+, BLK-89-S+-Mini DC Block

BLK-89-S+ Description

COAXIAL DC Block 50Ω 0.1 MHz to 8000 MHz SMA-Female to SMA-Male BLK-89-S+ .

BLK-89-S+ Applications

* y Test and Measurement Instrumentation y Communication Systems y Defense Systems Generic photo used for illustration purposes only Model No. Case Style Connectors BLK-89-S+ FF888 SMA-Female to SMA-Male Parameter Frequency Range Insertion Loss Return Loss ELECTRICAL SPECIFICATIONS AT +25°C Freq

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BLK-89-S+, BLK-89-S+-Mini. Please refer to the document for exact specifications by model.

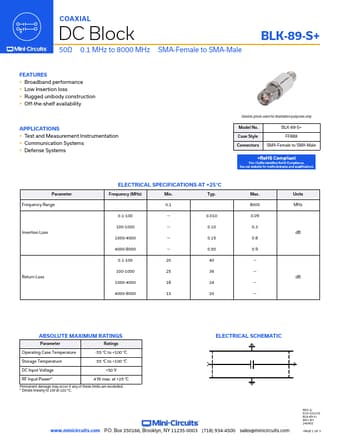

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BLK-89-S+, BLK-89-S+-Mini
Manufacturer
Mini-Circuits
File Size
293.49 KB
Datasheet
BLK-89-S+-Mini-Circuits.pdf
Description
DC Block
Note
This datasheet PDF includes multiple part numbers: BLK-89-S+, BLK-89-S+-Mini.
Please refer to the document for exact specifications by model.
