GP2Y+, GP2Y+-Mini Datasheet - Mini-Circuits

GP2Y+ Power Splitter/Combiner

GP2Y+ Features

* y Wide bandwidth, 1600 to 3300 MHz y Excellent isolation, 24 dB typ. y Excellent amplitude unbalance, 0.02 dB typ. y Good phase unbalance, 0.3 deg. typ. y Small size, 0.118”x0.118”x0.035” y High ESD level y Aqueous washable APPLICATIONS y WCDMA y DCS y Radar y Navigation y Instrumentation y Korea P

GP2Y+-Mini-Circuits.pdf

This datasheet PDF includes multiple part numbers: GP2Y+, GP2Y+-Mini. Please refer to the document for exact specifications by model.

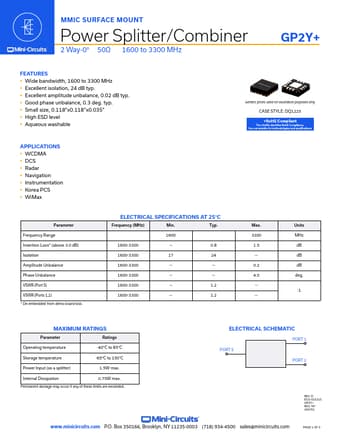

GP2Y+ Datasheet Preview Page 2 GP2Y+ Datasheet Preview Page 3

Datasheet Details

Part number:

GP2Y+, GP2Y+-Mini

Manufacturer:

Mini-Circuits

File Size:

395.76 KB

Description:

Power splitter/combiner.

Note:

This datasheet PDF includes multiple part numbers: GP2Y+, GP2Y+-Mini.
Please refer to the document for exact specifications by model.
