HFCN-1320, HFCN-1320_Mini, High Pass Filter

Ceramic NON-CATALOG High Pass Filter HFCN-1320 50Ω 1400 to 5000 MHz Maximum Ratings Operating Temperature -55°C to 100°C Storage Temperature .

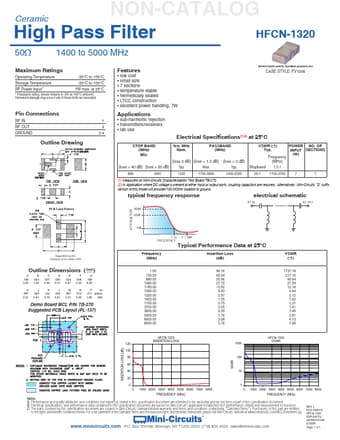

datasheet Preview Page 1 from Datasheet4u.com

HFCN-1320_Mini-Circuits.pdf

HFCN-1320 Datasheet Preview — This datasheet PDF includes multiple part numbers: HFCN-1320, HFCN-1320_Mini. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HFCN-1320, HFCN-1320_Mini

Manufacturer:

Mini-Circuits

File Size:

279.90 KB

Description:

High Pass Filter

Note:

This datasheet PDF includes multiple part numbers: HFCN-1320, HFCN-1320_Mini.
Please refer to the document for exact specifications by model.

Features

* low cost
* small size
* 7 sections
* temperature stable
* hermetically sealed
* LTCC construction

Applications

* sub-harmonic rejection
* transmitters/receivers
* lab use Electrical Specifications(1,2) at 25°C STOP BAND (MHz) Min. fco, MHz Nom. PASSBAND (MHz) (loss 3 dB) (loss < 1.3 dB) (loss < 2 dB) (loss > 40 dB) (loss > 20 dB) Typ. Max. Typ. VSWR (:1) Typ. POWER NO. OF IN
