JCIQ-176D+ Datasheet, Demodulator, Mini-Circuits

JCIQ-176D+ Features

  • Demodulator
  • shielded metal case with J-leads
  • excellent 3rd & 5th order harmonic suppression
  • good amplitude & phase unbalance
  • aqueous washable CASE STYLE: BG2

PDF File Details

Part number:

JCIQ-176D+

Manufacturer:

Mini-Circuits

File Size:

192.36kb

Download:

📄 Datasheet

Description:

I&q demodulator.

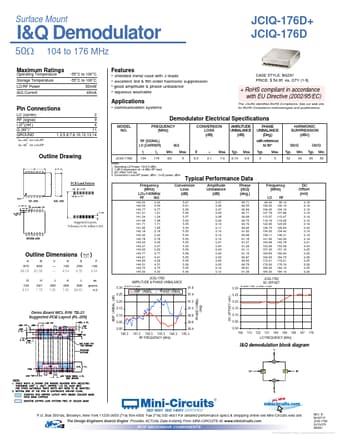

Datasheet Preview: JCIQ-176D+ 📥 Download PDF (192.36kb)

JCIQ-176D+ Application

  • Applications Pin Connections LO (carrier) RF (signal) I (0°)(ref.) Q (90°)
  • GROUND
  • Q=+90° for LORF
  • com
