MCA-35H Datasheet, Mixer, Mini-Circuits

MCA-35H Features

  • Mixer
  • wide bandwidth, 500 to 3500 MHz
  • excellent isolation, 30 dB typ. (1800-2500 MHz)
  • good matching 2:1 VSWR typ. (over 1800-2800 MHz)
  • small size 0.25”

PDF File Details

Part number:

MCA-35H

Manufacturer:

Mini-Circuits

File Size:

236.99kb

Download:

📄 Datasheet

Description:

Frequency mixer.

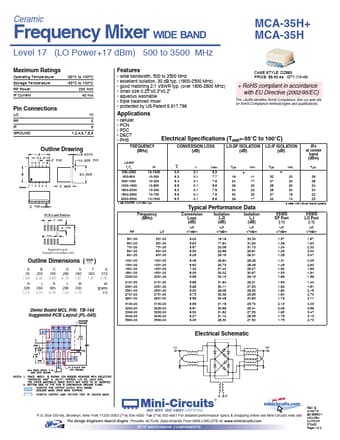

Datasheet Preview: MCA-35H 📥 Download PDF (236.99kb)
Page 2 of MCA-35H

MCA-35H Application

  • Applications
  • cellular
  • PCN
  • PDC
  • DECT
  • PHS Electrical Specifications (TAMB=-55°C to 100°C) FREQUENCY
