MCA1-60LH, MCA1-60LH_Mini - Frequency Mixer WIDE BAND

MCA1-60LH Description

www.DataSheet4U.com Ceramic Frequency Mixer WIDE BAND Level 10 (LO Power +10 dBm) .

MCA1-60LH Features

* low conversion loss, 6.2 dB typ. wide bandwidth, 1700 to 6000 MHz useable to 8 GHz IF, DC to 2000 MHz LTCC double balanced mixer low cost low profile, 0.08" PCN defense & weather radar WCDMA

MCA1-60LH Applications

* + RoHS compliant in accordance with EU Directive (2002/95/EC) The +suffix has been added in order to identify RoHS Compliance. There has been no change to the model's material, form, fit, or function. See our web site for RoHS Compliance methodologies and qualifications. Mixer Electrical Specifica

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MCA1-60LH, MCA1-60LH_Mini. Please refer to the document for exact specifications by model.

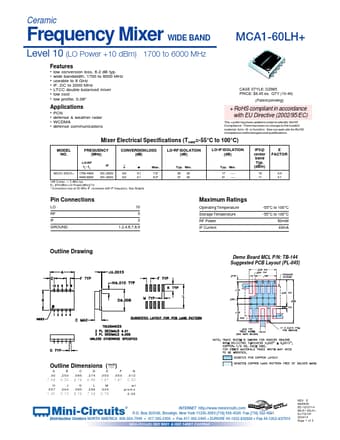

datasheet Preview Page 2

Datasheet Details

Part number
MCA1-60LH, MCA1-60LH_Mini
Manufacturer
Mini-Circuits
File Size
194.67 KB
Datasheet
MCA1-60LH_Mini-Circuits.pdf
Description
Frequency Mixer WIDE BAND
Note
This datasheet PDF includes multiple part numbers: MCA1-60LH, MCA1-60LH_Mini.
Please refer to the document for exact specifications by model.
