MCA1-80MH, MCA1-80MH_Mini Datasheet - Mini-Circuits

MCA1-80MH, MCA1-80MH_Mini, Frequency Mixer WIDE BAND

Ceramic Frequency Mixer WIDE BAND Level 13 (LO Power +13 dBm) .

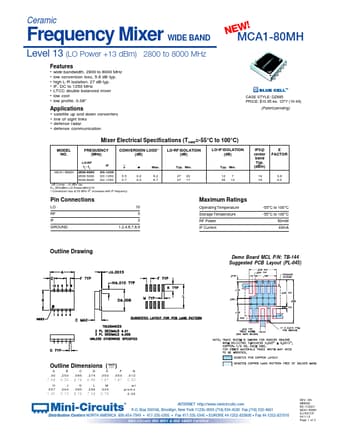

datasheet Preview Page 1 from Datasheet4u.com

MCA1-80MH_Mini-Circuits.pdf

MCA1-80MH Datasheet Preview — This datasheet PDF includes multiple part numbers: MCA1-80MH, MCA1-80MH_Mini. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MCA1-80MH, MCA1-80MH_Mini

Manufacturer:

Mini-Circuits

File Size:

143.13 KB

Description:

Frequency Mixer WIDE BAND

Note:

This datasheet PDF includes multiple part numbers: MCA1-80MH, MCA1-80MH_Mini.
Please refer to the document for exact specifications by model.

Features

* wide bandwidth, 2800 to 8000 MHz low conversion loss, 5.6 dB typ. high L-R isolation, 27 dB typ. IF, DC to 1250 MHz LTCC double balanced mixer low cost low profile, 0.08" satellite up and do

Applications

* Mixer Electrical Specifications (TAMB=-55°C to 100°C) MODEL NO. FREQUENCY (MHz) LO/RF fL- fU MCA1-80MH 2800-8000 2800-5000 5000-8000 IF DC-1250 DC-1250 DC-1250 CONVERSION LOSS
* (dB) _ x 5.5 5.7 σ 0.2 0.2 Max. 8.2 8.7 LO-RF ISOLATION (dB) Typ. Min. 27 27 20 17 LO-IF ISOLATION (dB) Typ. Min. 1
