NF-BF-10 - 50OHM / 3 /6 /10 dB / DC to 2000 MHz Adaptenuators

This page provides the datasheet information for the NF-BF-10, a member of the NF-BF-10_Mini 50OHM / 3 /6 /10 dB / DC to 2000 MHz Adaptenuators family.

Datasheet Summary

Features

  • improved interface matching wideband, DC-2000 MHz, useable to 4 GHz excellent VSWR, 1.1:1 typ. excellent flatness, ±0.1 dB typ. rugged unibody construction DC to 2000 MHz.

📥 Download Datasheet

Datasheet preview – NF-BF-10

Datasheet Details

Part number NF-BF-10
Manufacturer Mini-Circuits
File Size 57.56 KB
Description 50OHM / 3 /6 /10 dB / DC to 2000 MHz Adaptenuators
Datasheet download datasheet NF-BF-10 Datasheet
Additional preview pages of the NF-BF-10 datasheet.

📁 Similar Datasheet

  • NF-A-JJ - C15 Type Accessories (Hirose Electric)
  • NF-A-JJ-1 - C15 Type Accessories (Hirose Electric)
  • NF-A-PJ-1 - C15 Type Accessories (Hirose Electric)
  • NF-A-PP - C15 Type Accessories (Hirose Electric)
  • NF-A-PP-1 - C15 Type Accessories (Hirose Electric)
  • NF-P-TVEFCX - RFCO-AXIAL CONNECTORS(C15 type connectors for satellite broadcasting) (Hirose Electric)
  • NF-PA-JJ - C15 Type Accessories (Hirose Electric)
  • NF-PA-JJ-1 - C15 Type Accessories (Hirose Electric)
  • NF-PA-PJ-1 - C15 Type Accessories (Hirose Electric)
  • NF-PA-PP-1 - C15 Type Accessories (Hirose Electric)
Other Datasheets by Mini-Circuits
  • NF-BF-3 - 50OHM / 3 /6 /10 dB / DC to 2000 MHz Adaptenuators
  • NF-BF-6 - 50OHM / 3 /6 /10 dB / DC to 2000 MHz Adaptenuators
  • NF-BM-10 - 50OHM / 3 /6 /10 dB / DC to 2000 MHz Adaptenuators
  • NF-BM-3 - 50OHM / 3 /6 /10 dB / DC to 2000 MHz Adaptenuators
  • NF-BM-6 - 50OHM / 3 /6 /10 dB / DC to 2000 MHz Adaptenuators
  • NF-SF50 - 50OHM / DC to 18 GHz
  • NF-SM50 - 50OHM / DC to 18 GHz

Full PDF Text Transcription

Click to expand full text

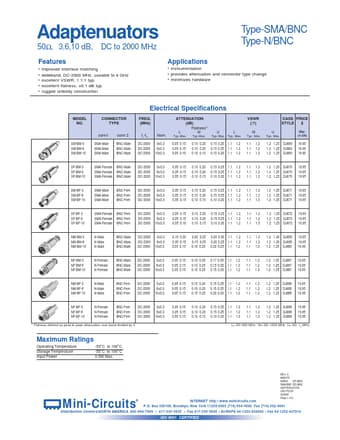

Adaptenuators 50Ω, 3,6,10 dB, Features • • • • • improved interface matching wideband, DC-2000 MHz, useable to 4 GHz excellent VSWR, 1.1:1 typ. excellent flatness, ±0.1 dB typ. rugged unibody construction DC to 2000 MHz Applications Type-SMA/BNC Type-N/BNC • instrumentation • provides attenuation and connector type change • minimizes hardware Electrical Specifications MODEL NO. CONNECTOR TYPE conn1 SM-BM-3 SM-BM-6 SM-BM-10 SMA-Male SMA-Male SMA-Male conn 2 BNC-Male BNC-Male BNC-Male FREQ. (MHz) fL-fU DC-2000 DC-2000 DC-2000 Nom. 3±0.3 6±0.3 10±0.3 ATTENUATION (dB) Flatness* L M Typ. Max. Typ. Max. VSWR (:1) U 0.15 0.25 1.1 0.15 0.25 1.1 0.10 0.20 1.1 L 1.2 1.2 1.2 1.1 1.1 1.1 M Typ. Max. CASE PRICE $ STYLE U Typ. Max. Qty. (1-24) Typ. Max. Typ. Max. 0.05 0.15 0.05 0.15 0.05 0.10 0.
